Thank you for visiting the DARIPI

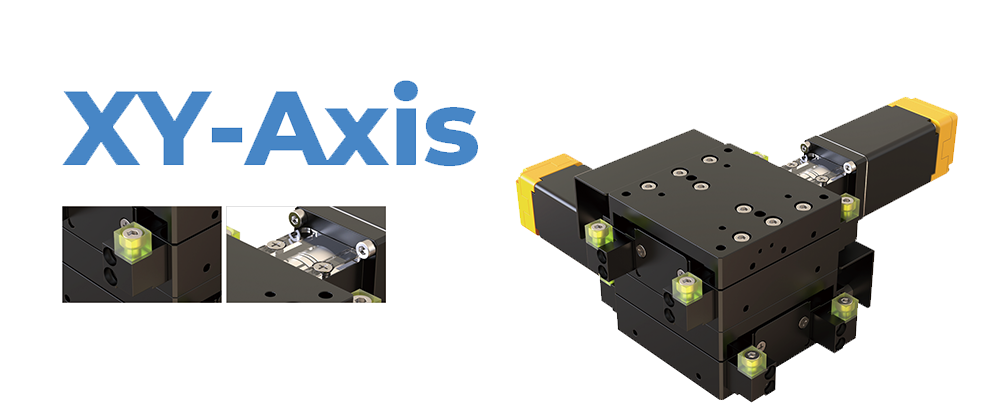

Click on the desired Axis to go to the corresponding product specification table.

Click on the icon to download

MODEL.

Table Size
(mm)

Height
(mm)

Travel Range
(mm)

Weight
(kg)

Load Capacity
(kg)

Precision (μm)

Max Speed
(mm /sec)

Sensor
(L: limit
H: home)

Data

Accuracy

Repeatability

PDF

DWG

STEP

DL2-661C

60 x 60

60

±10

2

8

10

±1

10

2L, 1H

DL2-681C

60 x 80

60

±20

2.2

8

12

±1

10

2L, 1H




DL2-881C

80 x 80

92

±15

4.6

20

10

±1

10

2L, 1H




DL2-8101C

80 x 100

92

±20

4.8

20

12

±1

10

2L, 1H




DL2-8131C

80 x 130

92

±35

5.2

20

14

±1

10

2L, 1H
